Non-polarized, suitable for photovoltaic applications
Tested according to lEC/EN 60947-2
Rated short circuit breaking capacity lcu 10 kA
Rated operating voltage Ue of 180 V DC per pole
Wi
According to lEC/EN 60947-1 and EN 60947-5-1
Auxiliary contacts synchronous with main contacts of the device
Signal contacts active on electrical tripping of the circuit breaker(tripping si
Non-polarized connection
1P & 2P versions
High-rated breaking capacities up to 10 kA
Rated current up to 100A
Rated operating voltage: 300VDC(1P); 600VDC(2P).

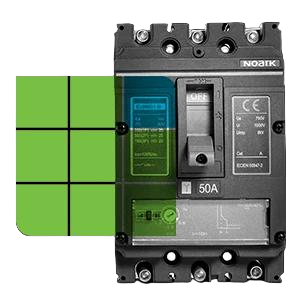

Thermo-magnetic tripping unit for power distribution
Frame sizes M1-M5
Rated operating current up to 800 A
2, 3 and 4-pole versions
Rated ultimate short circuit breaking capacity lcu=lcs
DC MCCB Switch Disconnectors
Frame sizes M1-M6
Rated operating current up to 1600 A
Tested according to EN 60947-3
DC current character
3 and 4-pole versions
Rated voltage 750V DC (3-po
