Non-polarized, suitable for photovoltaic applications
Tested according to lEC/EN 60947-2
Rated short circuit breaking capacity lcu 10 kA
Rated operating voltage Ue of 180 V DC per pole
Wi
Non-polarized, suitable for photovoltaic applications
Tested according to lEC/EN 60947-2
Rated short circuit breaking capacity lcu 6 kA
Rated operating voltage Ue of 250 V DC per pole
Wid
Non-polarized connection
1P & 2P versions
High-rated breaking capacities up to 10 kA
Rated current up to 100A
Rated operating voltage: 300VDC(1P); 600VDC(2P).
According to lEC/EN 60947-1 and EN 60947-5-1
Auxiliary contacts synchronous with main contacts of the device
Signal contacts active on electrical tripping of the circuit breaker(tripping si
Thermo-magnetic tripping unit for power distribution
Frame sizes M1-M5
Rated operating current up to 800 A
2, 3 and 4-pole versions
Rated ultimate short circuit breaking capacity lcu=lcs
DC MCCB Switch Disconnectors
Frame sizes M1-M6
Rated operating current up to 1600 A
Tested according to EN 60947-3
DC current character
3 and 4-pole versions
Rated voltage 750V DC (3-po
Accessories for Ex9M line devices
Auxiliary contacts synchronous with main contacts
Signal contacts active on electrical tripping of the circuit breaker(tripping signal contacts)
Shunt tri

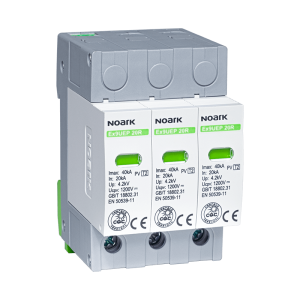

Suitable for PV systems
PV T2(Class Il, Type 2, C) class SPDs
Meet requirements of EN 50539-11
Nominal discharge current In 20 kA (8/20 s) per path
Maximum discharge current lmax 40 kA (8

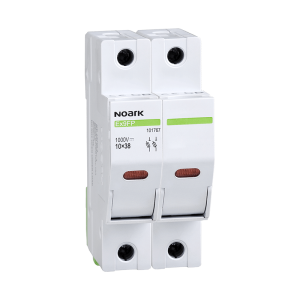

Suitable for PV systems
Rated short-circuit breaking capacity lcn with appropriate fuse-link up to 33 kA
Rated current up to 30 A
Rated operational voltage 1000 V DC
Optical tripping indi
Suitable for PV systems
Rated short-circuit breaking capacity lcn with appropriate fuse-link up to 20 kA
Rated current up to 50 A
Rated operational voltage 1500 V DC
Fuse-links of size 10

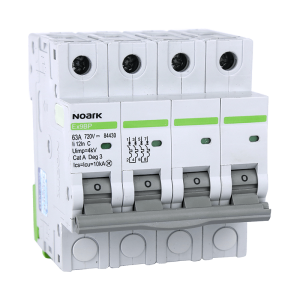

Miniature Circuit Breakers up to 125A
Tested according to IEC 60947-2 & UL 1077
High rated breaking capacity up to 20kA
1P & 2P
Rated operating voltage: 110VDC(1P); 250VDC(2P)
Wide range
Electrical life ≥ 3000 times;
Insulation voltage level up to 1600VDC
Suitable for use in areas with an altitude of 5000m;
Categories include DC-22A, DC-23A, DC-PV2
IP30 protection degre
