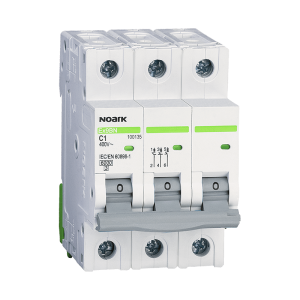

Miniature Circuit Breakers according to lEC/EN 60898-1
Rated short circuit breaking capacity lcn 6kA
1 up to 3-pole versions
Tripping curve C, D
Rated current up to 63A
Rated operational
Miniature Circuit Breakers according to lEC/EN 60898-1
Rated short circuit breaking capacity lcn 10kA
1 up to 4-pole versions
Tripping curve C D
Rated current up to 63A
Rated operational
Tested according to lEC/EN 60947-2
High rated short circuit breaking capacity: <br>up to 25kA acc.to EN 60947-2<br>up to 20kA acc.to EN 60898-1
1 up to 4-pole versions
Tripping curve C, D
According to lEC/EN 60947-1 and EN 60947-5-1
Auxiliary contacts synchronous with main contacts of the device
Signal contacts active on electrical tripping of the circuit breaker(tripping si

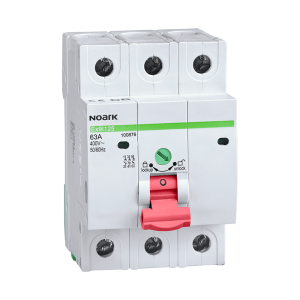

Tested according to lEC/EN 60947-3
Rated short-time withstand current lcw=12 x le 1s
1 & 3-pole versions
Rated current up to 125A
Rated operational voltage 240/415V AC
Built-in lock mech

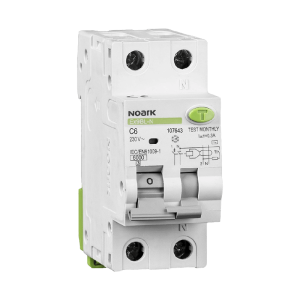

Residual Current circuit Breakers with Overload protection according to AS/NZS 61009:2015
Rated breaking capacity Icn 6 kA
1+N-pole version
Rated residual current 30, 100, 300 mA
Rated cu

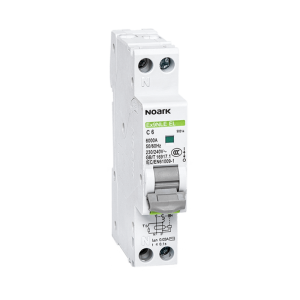

One-module Residual Current circuit Breakers with Overload protection accordingto EN 61009-1
Rated breaking capacity lcn 6 kA
1P+N-pole version
Rated residual current 30 mA
Rated currents
Residual Current Circuit Breakers according to lEC/EN 61008-1 and IEC/EN 62423
Cond. rated short circuit strength Inc 10 kA
B type
2 and 4-pole versions
Rated residual current 30, 100 and

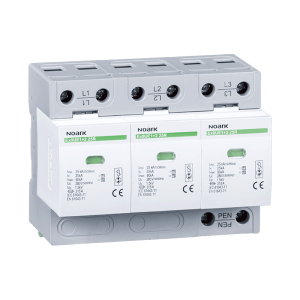

Surge Protection Devices
Type 1+2(Classl+ll, T1+T2, B+C)
Tested according to EN 61643-11
Max. impulse current limp 25 kA (10/350 us) per module and 100 kA for NPE module
Maximum continuou

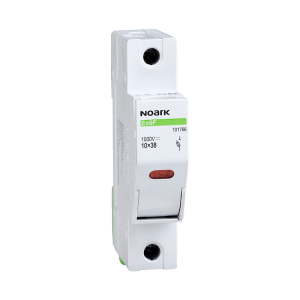

Meet requirements of EN 60947-3
Rated operating voltage 400/690 V AC
Versions with rated current 32 A (10 x 38 mm)
Utilization category AC-20B at 400/690 V AC
Sealing possibility

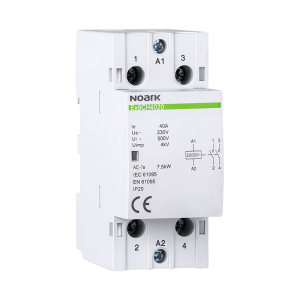

Meet requirements of IEC/EN 61095
2 or 4-contact versions
Rated current up to 25A, 40A, 63A
Control coil voltage 24, 240V AC
Various contact combinations

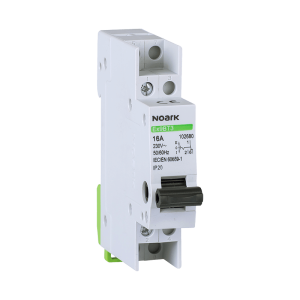

Group Change-Over Switches
Meet requirements of IEC EN 60947-3
Rated current from 16 A to 40 A
Rated operating voltage 240/415 V AC
Utilization category AC-22A
Contact form ( I-O-II )
1

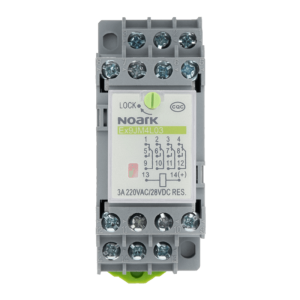

Meet requirements of IEC / EN 61810-1
Rated current 3, 5 or 10 A
Two versions with 2 change-over contacts (5 or 10 A) and version with 4 change-over contact (3 A)
Plugs and bases offered s
Group Change-Over Switches
Meet requirements of IEC EN 60947-3
Rated current 63A
Rated operating voltage 240/415 V AC
Utilization category AC-22A
Contact form ( I-O-II )
1 up to 4-pole
